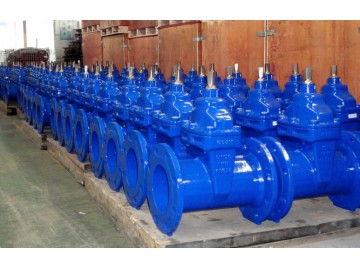

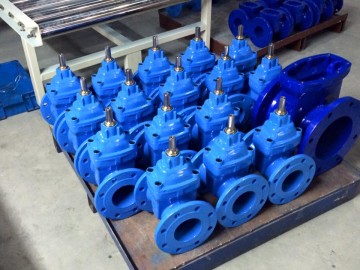

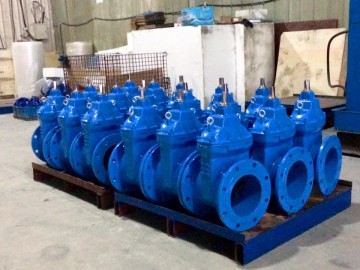

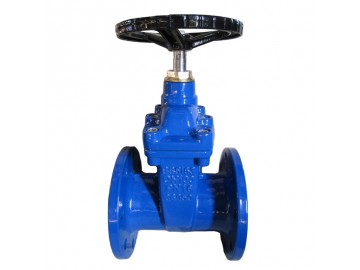

Flange Gate Valve
Resilient_Wedge_Gate_Valves
Model：DIN ANSI BS JIS
Specifications：DN40-DN600
Market value：0.00
Preferential price：0.00
Product Description: Flange Gate Valve
Application field
Drinkable water supply and distribution, waste water treatment and sewerage
General informations
FROM DN40 TO DN600
NOMINAL PRESSURE: PN10 e PN16
DESIGN STANDARD: EN 1171, EN 1074-1 and EN 1074-2
FACE TO FACE: EN 558 Series14/15 < F4-F5 >
FLANGES: EN 1092-2
TESTS: EN 12266-1
WORKING TEMPERATURE: Max. +70°C
SURFACE PROTECTION: FBE coating process with epoxy resin powder of blue colour RAL 5015 and thickness of 250µm.
